Alfa Romeo 4-Cylinder camshafts in self production

                                        Zurück


Profile Duration Lift Designation New/Prapare Typ Price Euro Valve lift diagram
Sport 270° 11,3 mm Head must prepare New Turbo each 275,-

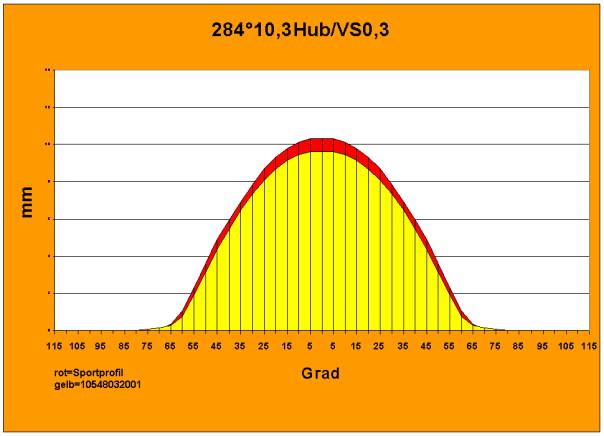

Road 284° 10,33 mm 2,0 possible with original jets Prepare/exchange only Carbs each 175,-

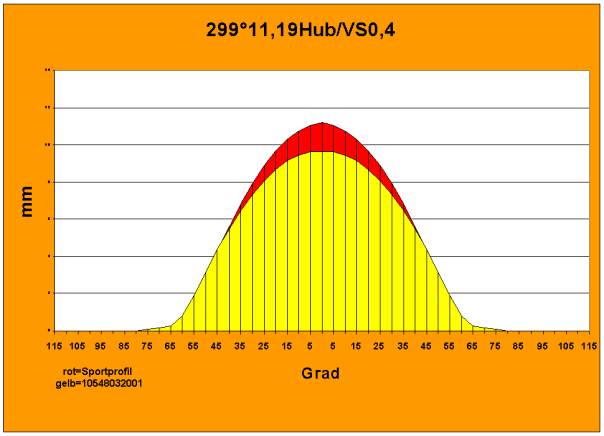

Road 299° 11,0 mm Head New Carbs each 275,-

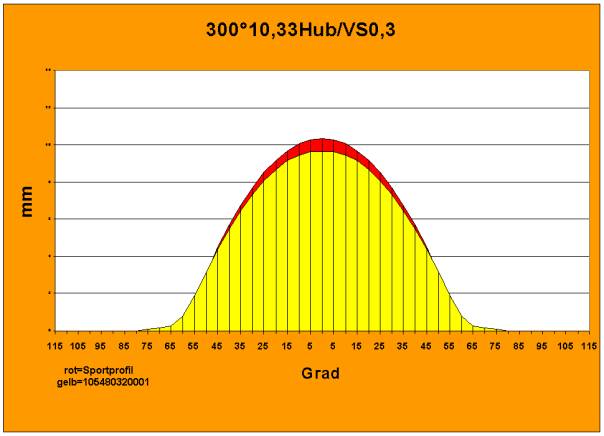

Road 300° 10,33 mm For original head possible Prepare/exchange only Carbs each 175,-

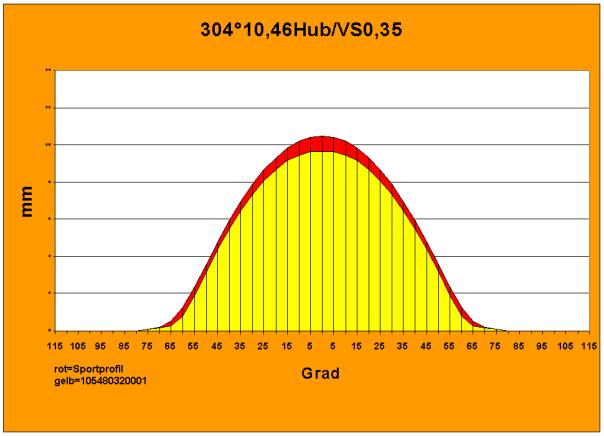

Road 304° 10,64 mm For original head possible New Carbs each 275,-

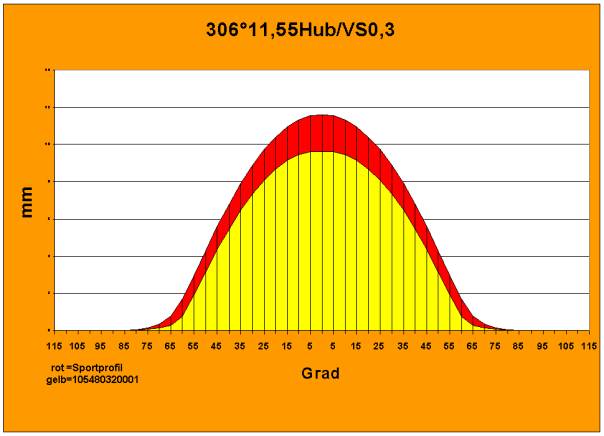

Rally 306° 11,55 mm Head must prepare (Torque camshaft) New Carbs each 275,-

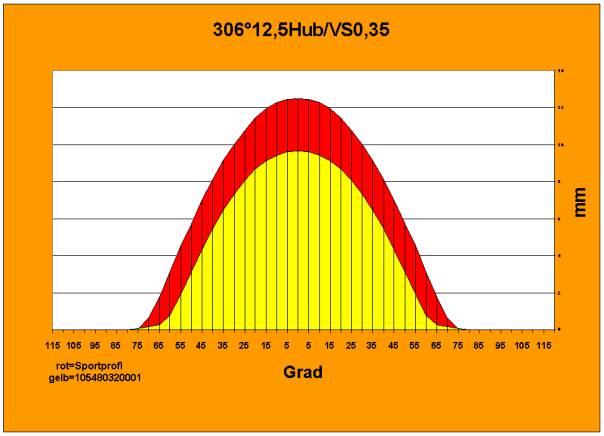

Race 306° 12,50 mm Head and psiton must prepare New Carbs each 275,-

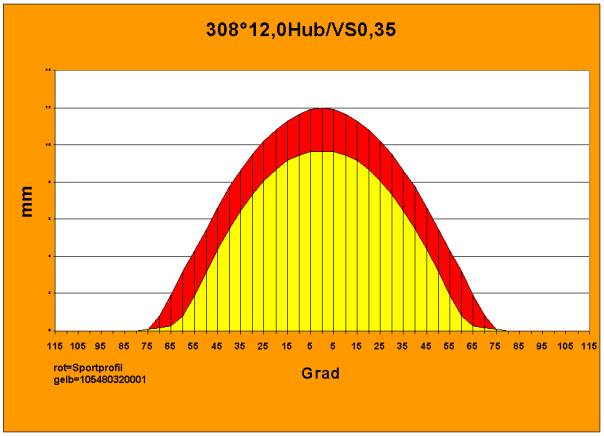

Race 308° 12,00 mm Head and piston must prepare New Carbs each 275,-

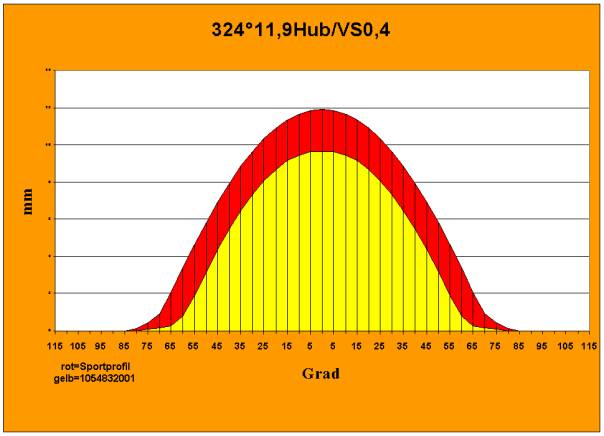

Race 324° 11,90 mm Head and piston must prepare New Carbs each 275,-
Originale 299° 11,0 mm 116.55.03.200.08 Prepare Carbs each 125,-
Original 257° 8,0 mm 116.99.03.200.00 Prepare 75 Turbo each 125,-
Original 9,0 mm 105.20.03.200.00 Prepare Carbs each 125,-
Originale 9,5 mm 105.48.03.200.01 Prepare Carbs each 125,-
Original 299° 11,0 mm 116.85.03.200.01 Prepare Motronic Alfetta each 125,-
         *Originale camshats in exchange only*


No waranty for raceparts !
